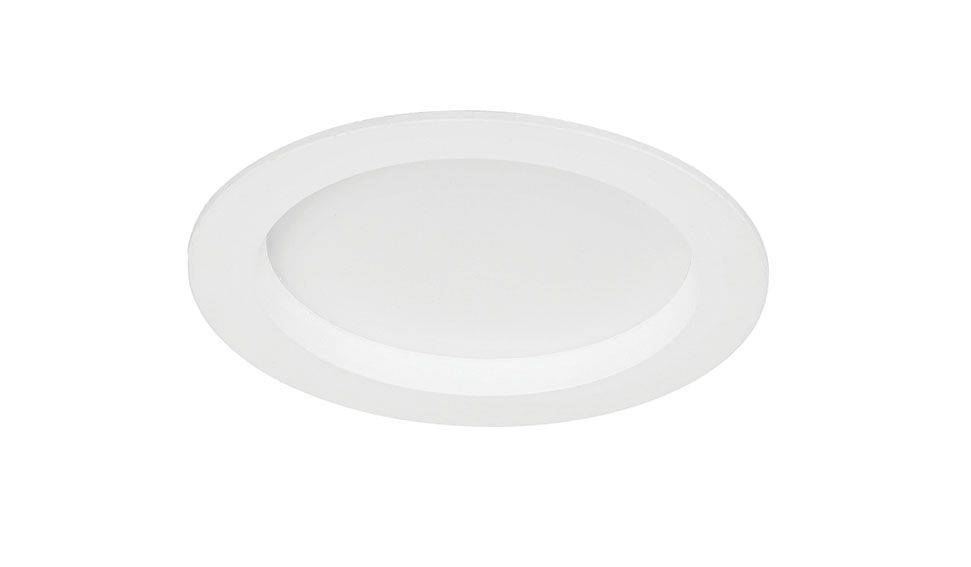

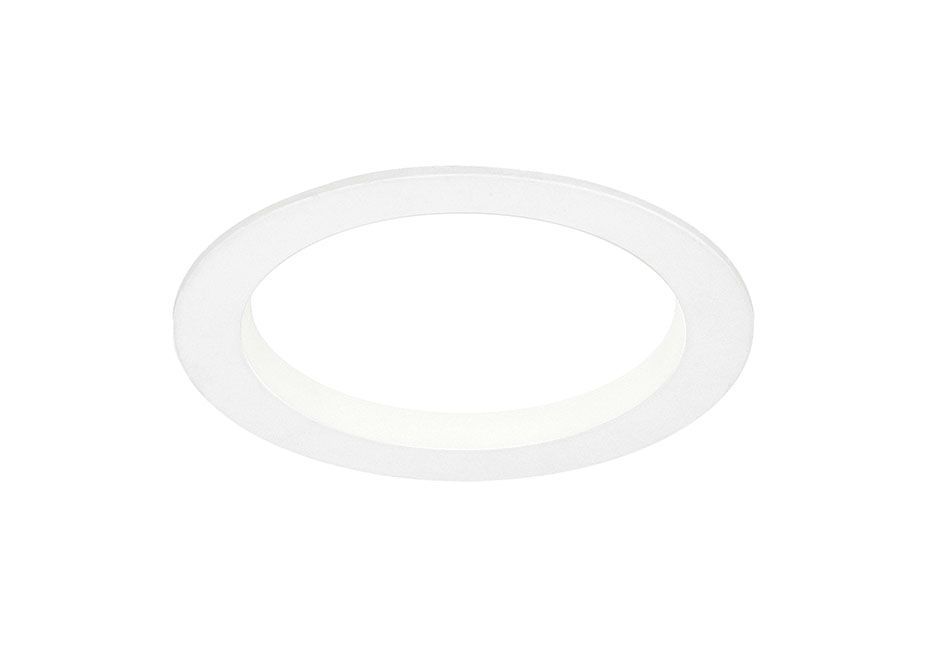

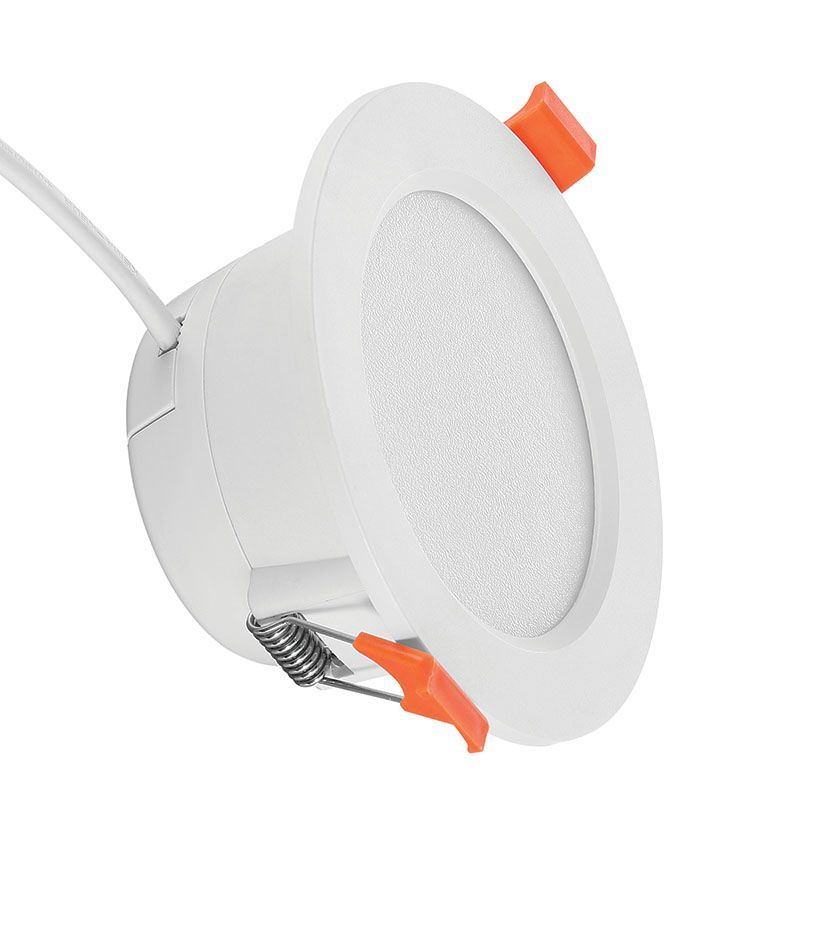

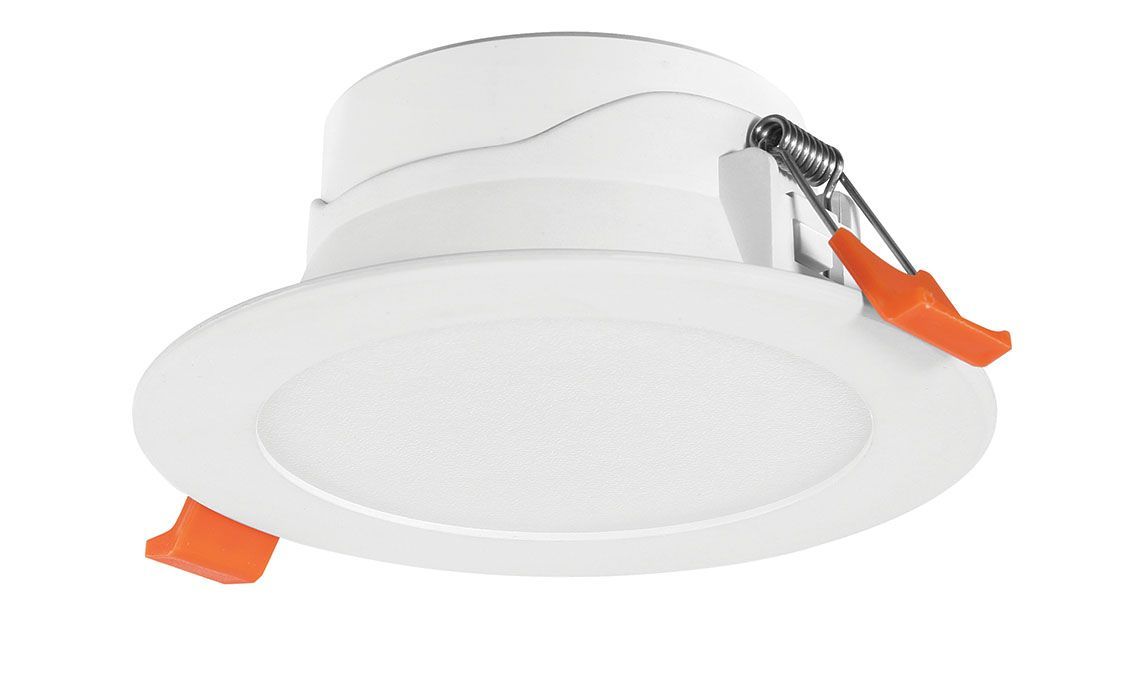

10W 3.5-inch E HY-TD10AC35E

Model Number

HY-TD9AC35E-F /HY-TD9AC35E

Material

Plastic+Aluminum

Product Size

86mm Height x 110mm Outer Diameter

Hole Size

Φ90mm

Power

8/9/10W

LED Source

2835 SMD

Luminous

＞80Lm/W

CRI

Ra≥80

Power factor

≥0.9

Input Voltage

AC220-240V

BeamAngle

110℃

Color Tenperature

Warm White (3000K), Natural White(Daylight 4000K), Cool White (6000K)

Characteristic

  • Integrated-Drive Dimmable
  • Three segment dialing color adjustment temperature(single color temperature can be customized)
  • Built in aluminum cup and thermal conductive nylon shell, with good heat dissipation effect and extended service life
  • HY-TD9AC35E-F (No strobe)

Connection

Integrated Driver, Supply Plug & 0.6m Flexible Cord(Optional)

Product Dimensions

Contextual Image

Home lighting can adapt to the home environment to create different lighting effects

Home, office, showroom, restaurant, supermarket, etc
