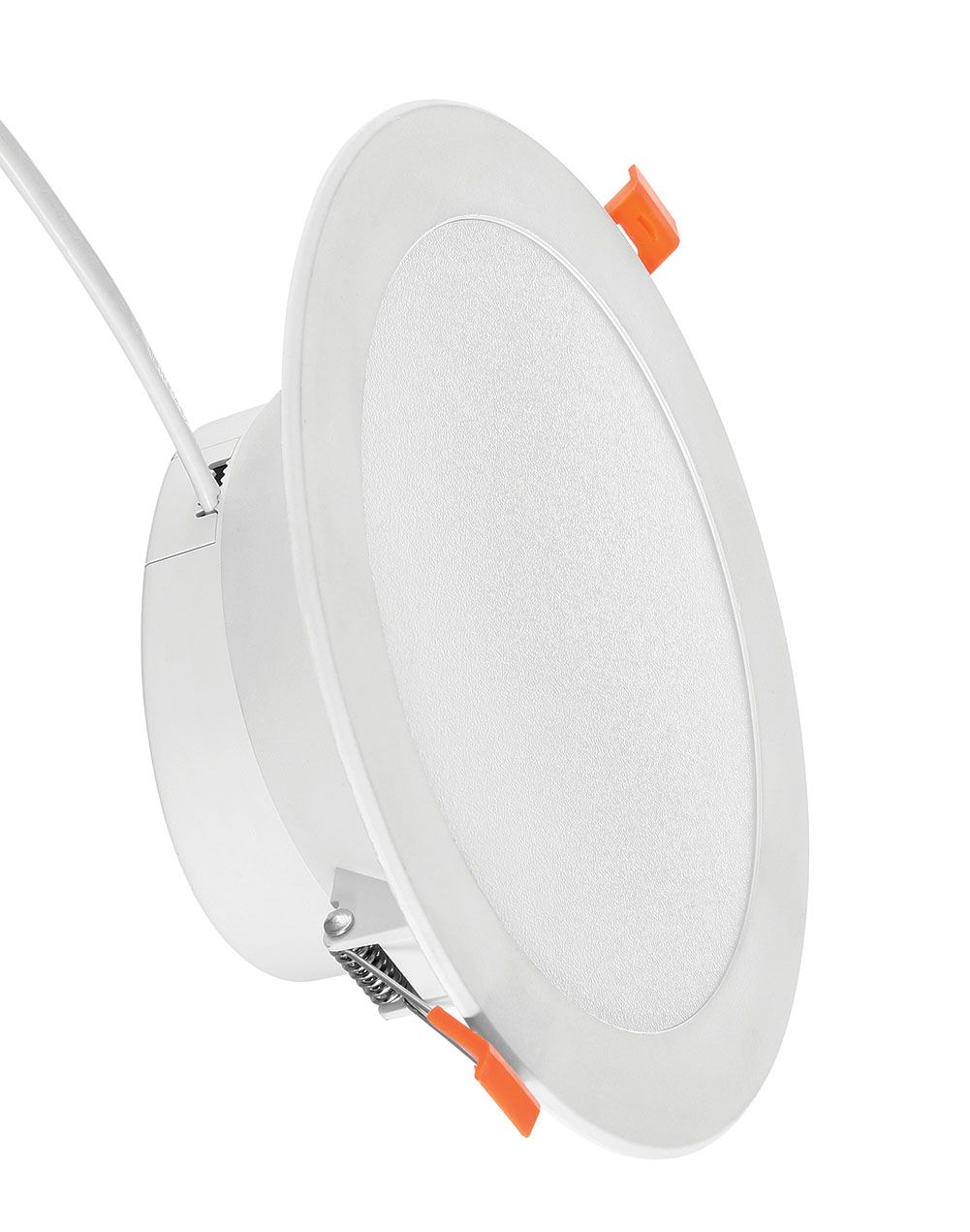

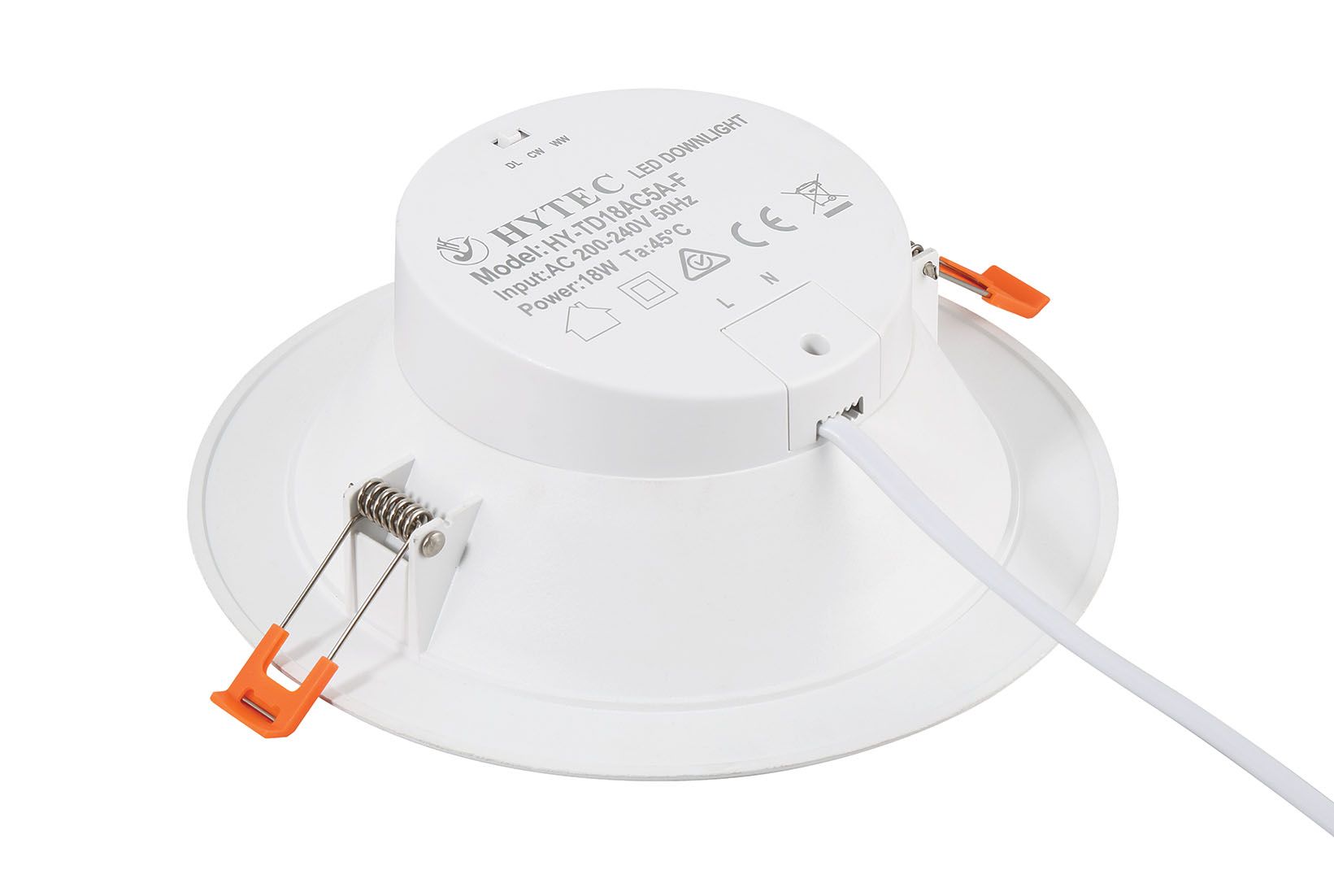

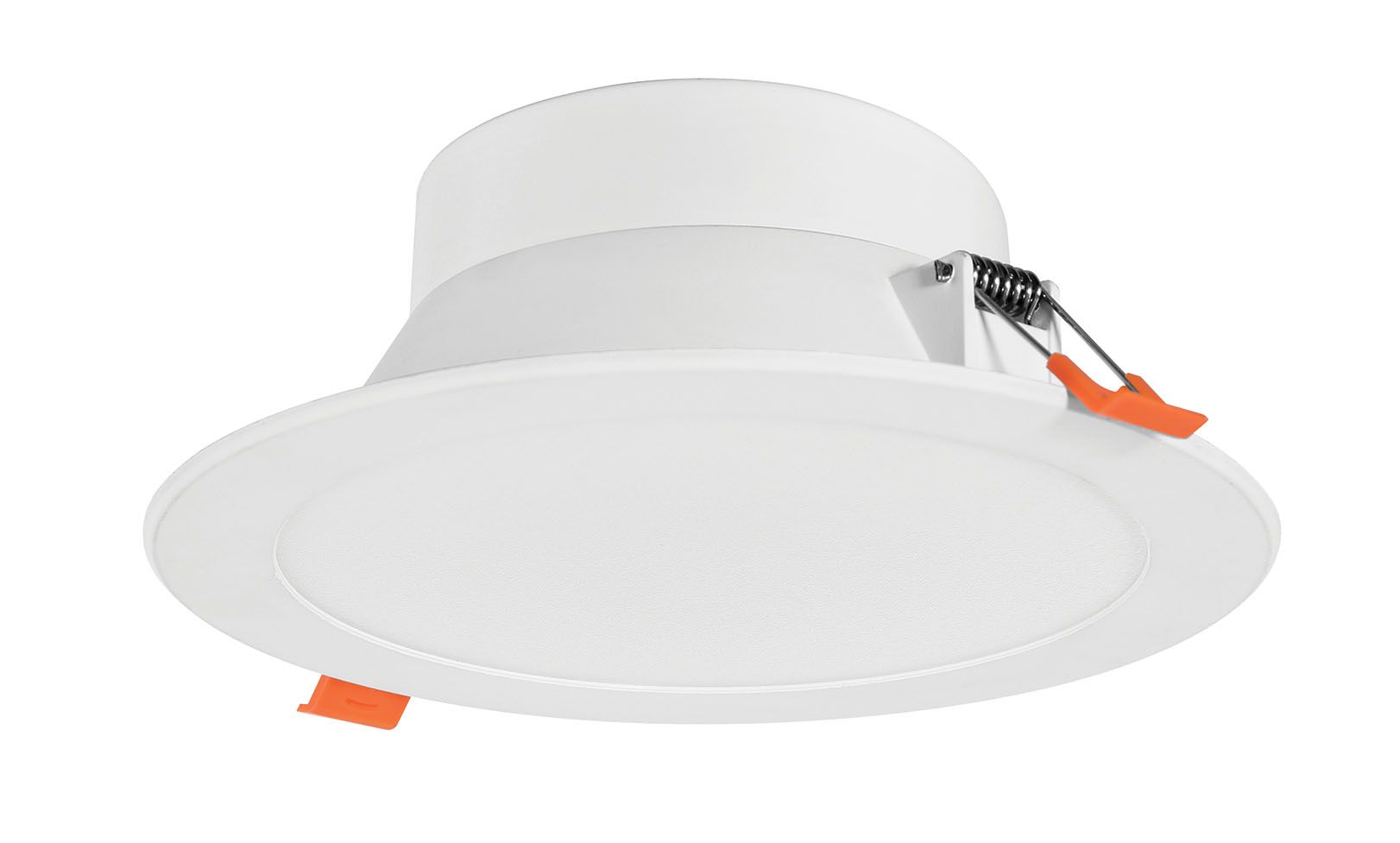

18W 6-inch HY-TD18AC6A

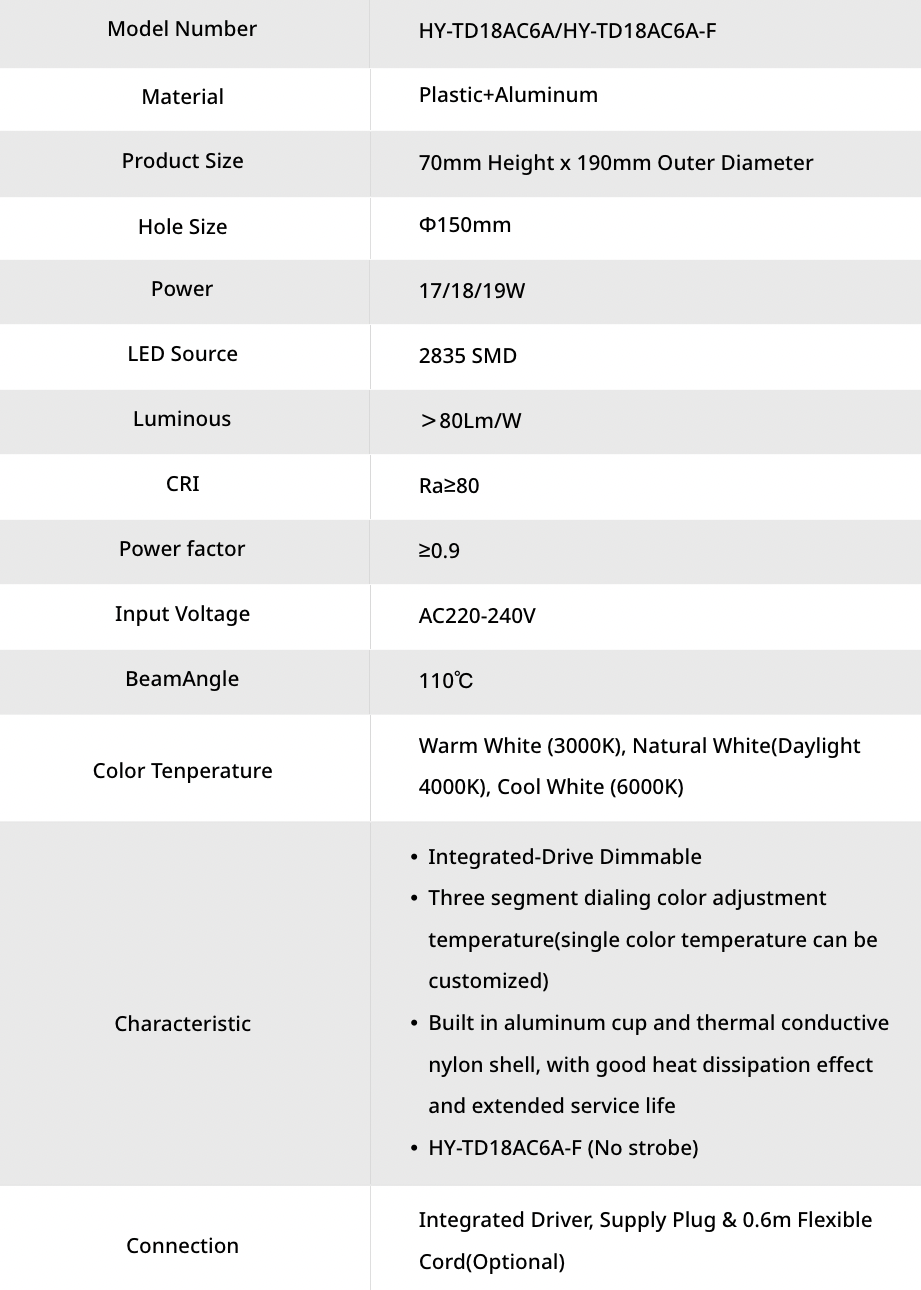

Model Number

HY-TD18AC6A/HY-TD18AC6A-F

Material

Plastic+Aluminum

Product Size

70mm Height x 190mm Outer Diameter

Hole Size

Φ150mm

Power

17/18/19W

LED Source

2835 SMD

Luminous

＞80Lm/W

CRI

Ra≥80

Power factor

≥0.9

Input Voltage

AC220-240V

BeamAngle

110℃

Color Tenperature

Warm White (3000K), Natural White(Daylight 4000K), Cool White (6000K)

Characteristic

  • Integrated-Drive Dimmable
  • Three segment dialing color adjustment temperature(single color temperature can be customized)
  • Built in aluminum cup and thermal conductive nylon shell, with good heat dissipation effect and extended service life
  • HY-TD18AC6A-F (No strobe)

Connection

Integrated Driver, Supply Plug & 0.6m Flexible Cord(Optional)

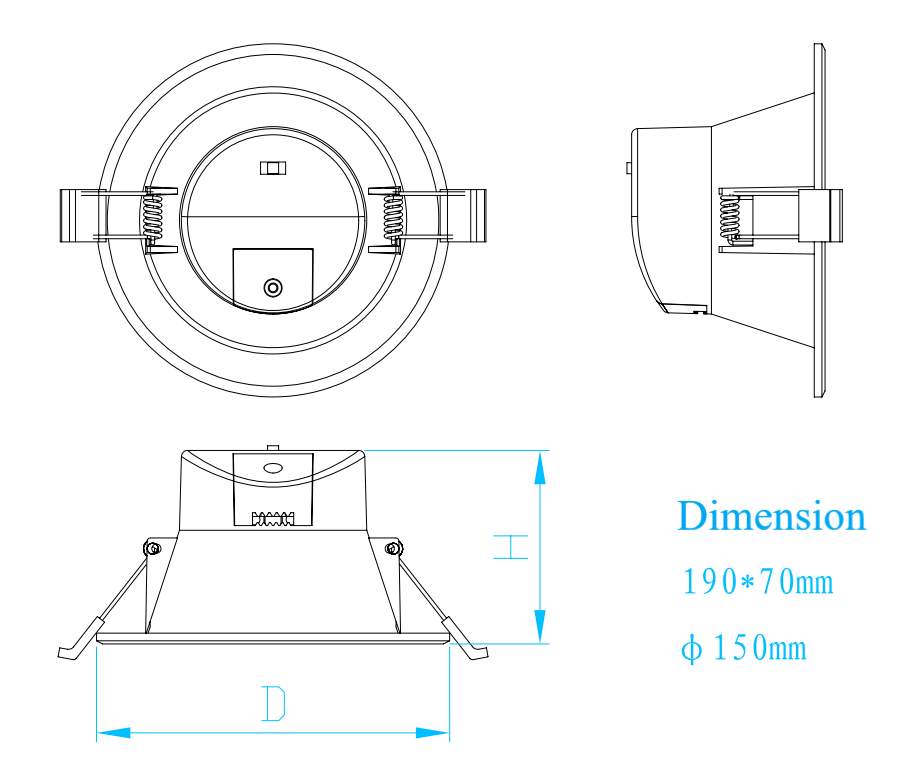

Product Dimensions

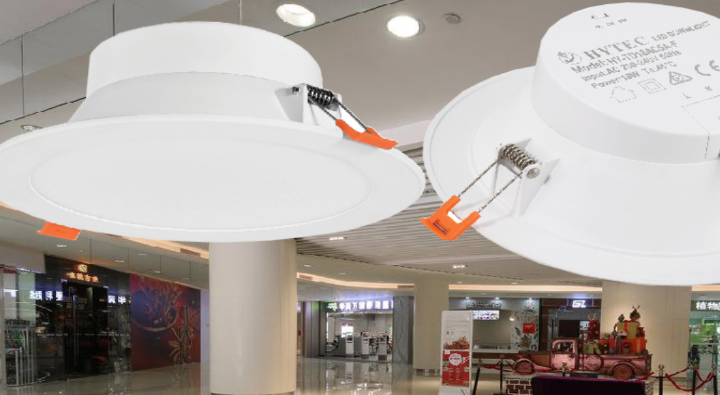

Contextual Image

Home lighting can adapt to the home environment to create different lighting effects

Home, office, showroom, restaurant, supermarket, etc

Related Products

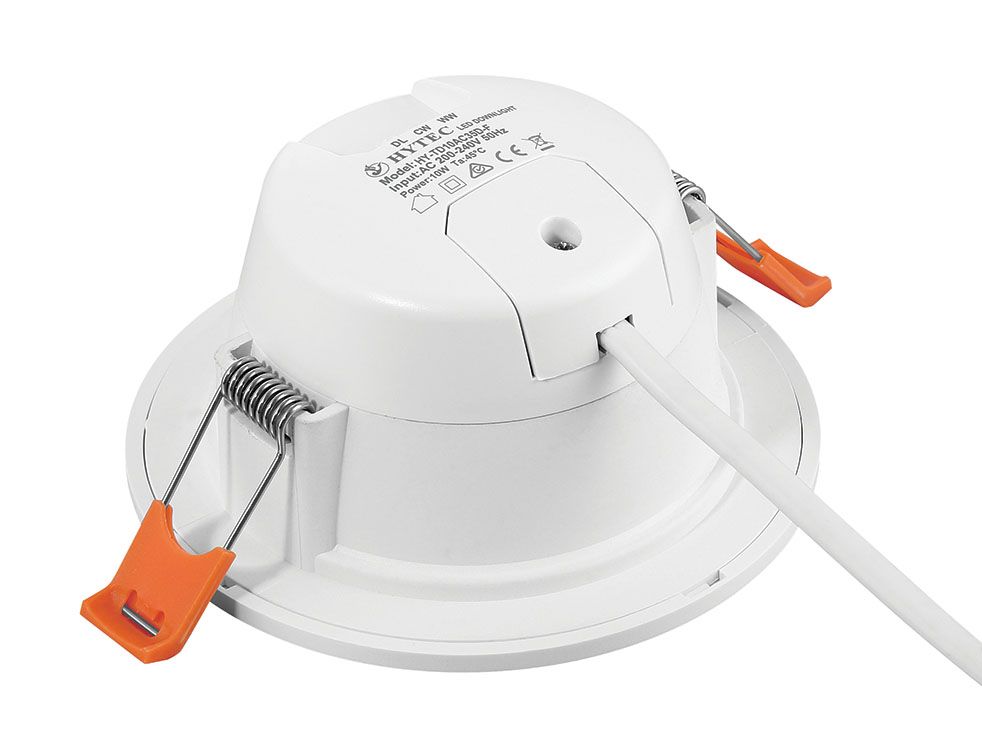

10W 3.5-inch A

HY-TD10AC35A

View Specifications

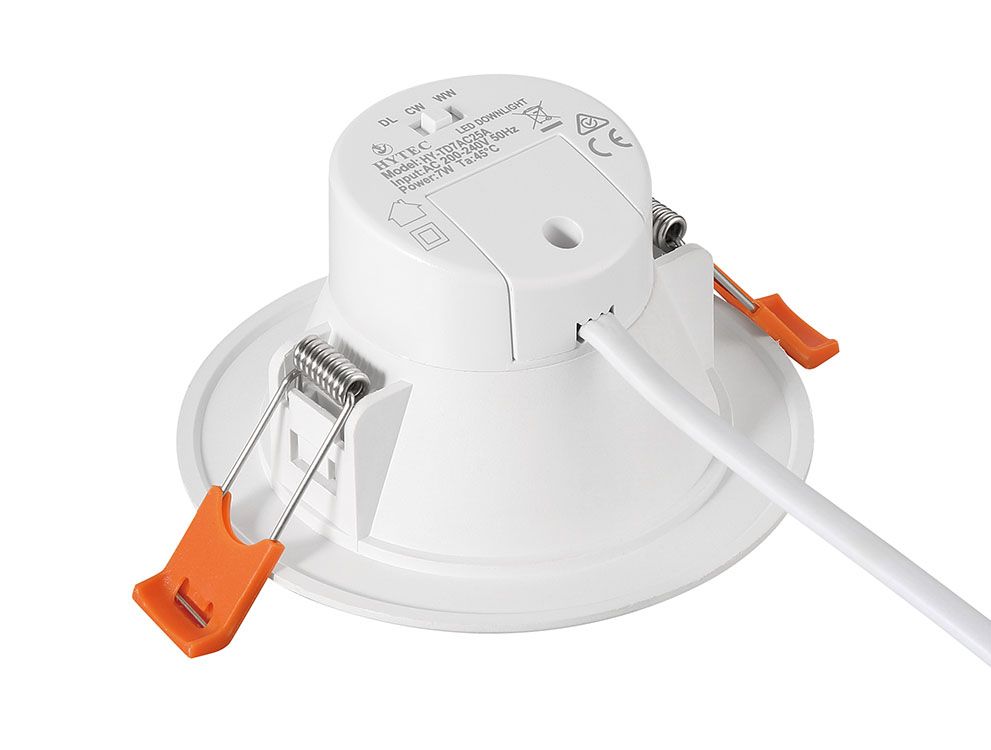

10W 3.5-inch D

HY-TD10AC35D

View Specifications

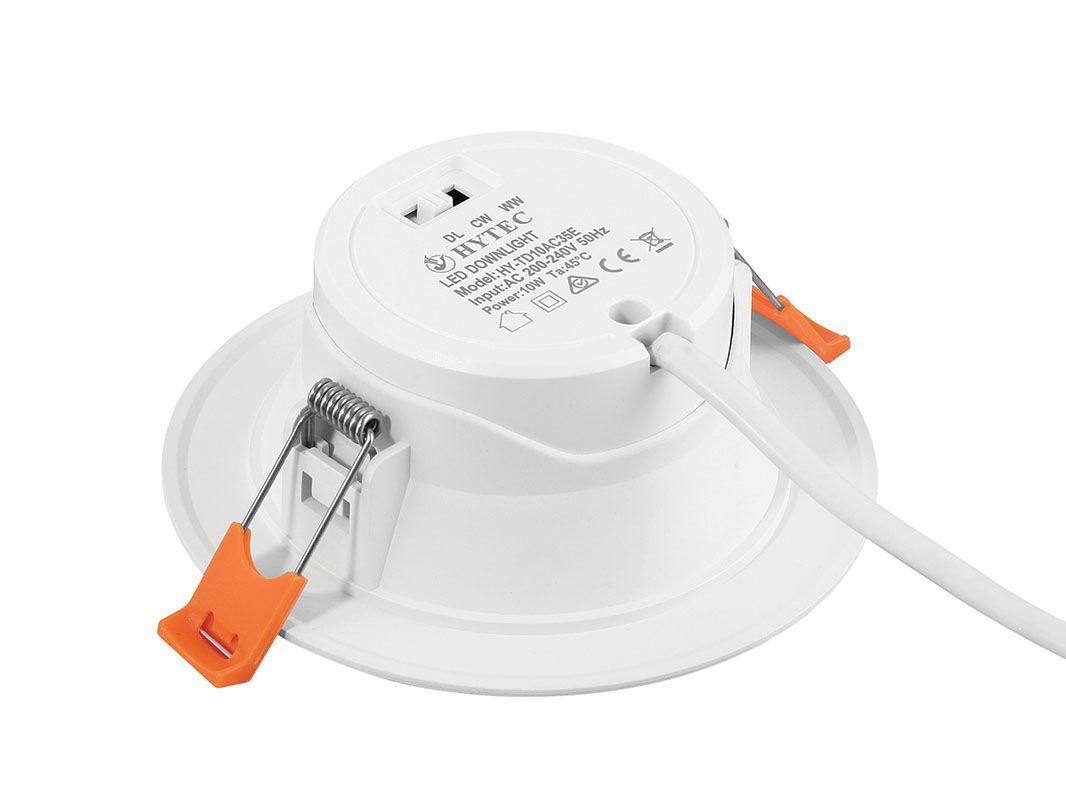

10W 3.5-inch E
